# 06 - Elastic wave equation implementation on a staggered grid

This second elastic tutorial extends the previous constant parameter implementation to varying parameters (Lame parameters) and takes advantage of the Tensorial capabilities of Devito to write the elastic wave equation following its mathematical definition. The staggering is automated via the TensorFunction API.

## Explosive source

We will first attempt to replicate the explosive source test case described in [1], Figure 4. We start by defining the source signature $$g(t)$$, the derivative of a Gaussian pulse, given by Eq 4:

$g(t) = -2 \alpha(t - t_0)e^{-\alpha(t-t_0)^2}$

from devito import *
from examples.seismic.source import RickerSource, Receiver, TimeAxis
from examples.seismic import plot_image, demo_model
import numpy as np

import matplotlib.pyplot as plt

from sympy import init_printing, latex
init_printing(use_latex='mathjax')

# Some ploting setup
plt.rc('text', usetex=True)
plt.rc('font', family='serif')
plt.rc('xtick', labelsize=20)
plt.rc('ytick', labelsize=20)
#NBVAL_IGNORE_OUTPUT
# Initial grid: 3km x 3km, with spacing 10m
nlayers = 5
so = 8
model = demo_model(preset='layers-elastic', nlayers=nlayers, shape=(301, 301), spacing=(10., 10.),
space_order=so)

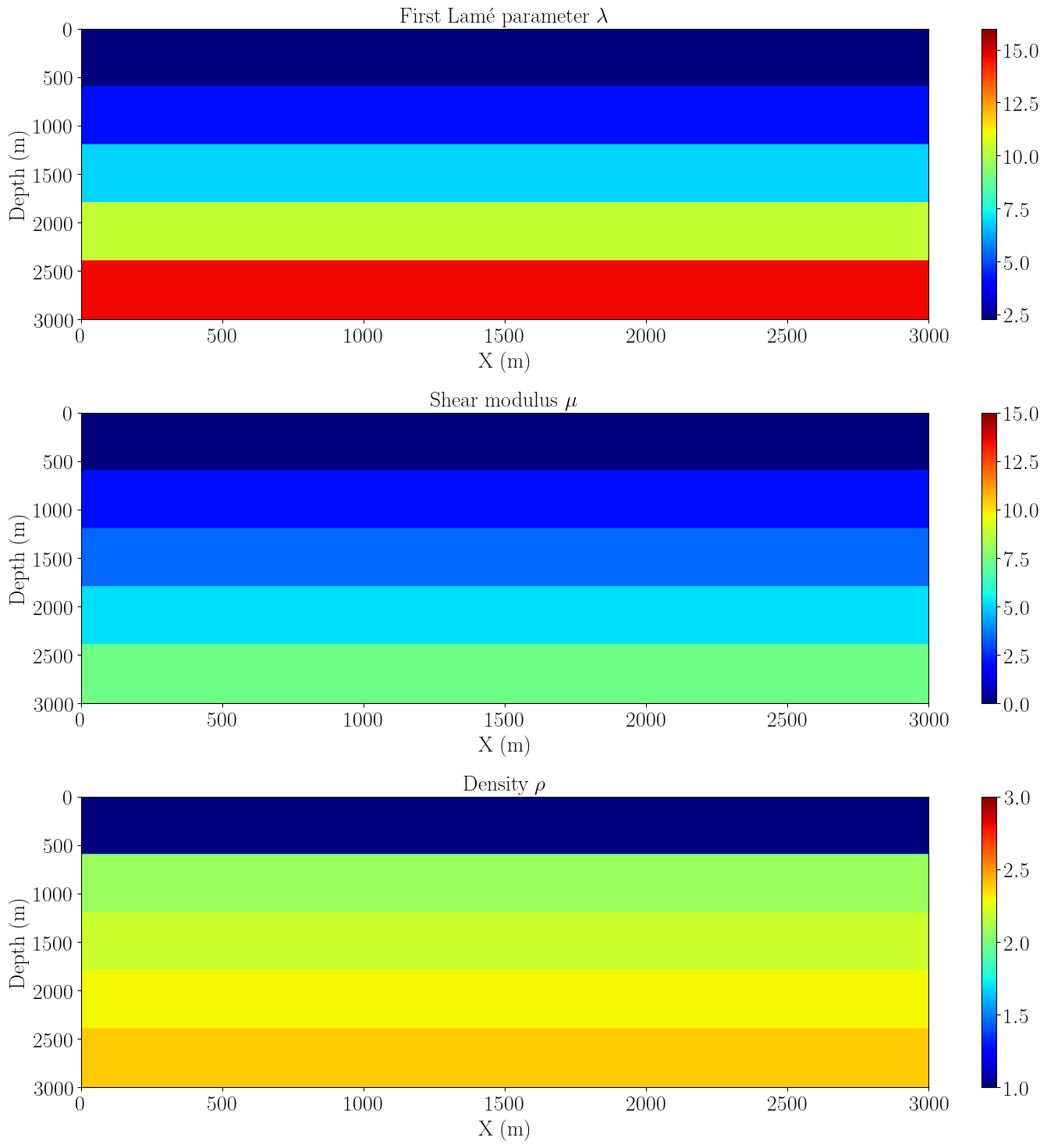

#NBVAL_SKIP
aspect_ratio = model.shape[0]/model.shape[1]

plt_options_model = {'cmap': 'jet', 'extent': [model.origin[0], model.origin[0] + model.domain_size[0],
model.origin[1] + model.domain_size[1], model.origin[1]]}
fig, ax = plt.subplots(nrows=3, ncols=1, figsize=(15, 15))

slices = [slice(model.nbl, -model.nbl), slice(model.nbl, -model.nbl)]

img1 = ax[0].imshow(np.transpose(model.lam.data[slices]), vmin=1.5**2, vmax=4.0**2, **plt_options_model)
fig.colorbar(img1, ax=ax[0])
ax[0].set_title(r"First Lam\'e parameter $\lambda$", fontsize=20)
ax[0].set_xlabel('X (m)', fontsize=20)
ax[0].set_ylabel('Depth (m)', fontsize=20)
ax[0].set_aspect('auto')

img2 = ax[1].imshow(np.transpose(model.mu.data[slices]), vmin=0, vmax=15, **plt_options_model)
fig.colorbar(img2, ax=ax[1])
ax[1].set_title(r"Shear modulus $\mu$", fontsize=20)
ax[1].set_xlabel('X (m)', fontsize=20)
ax[1].set_ylabel('Depth (m)', fontsize=20)
ax[1].set_aspect('auto')

img3 = ax[2].imshow(1/np.transpose(model.b.data[slices]), vmin=1.0, vmax=3.0, **plt_options_model)
fig.colorbar(img3, ax=ax[2])
ax[2].set_title(r"Density $\rho$", fontsize=20)
ax[2].set_xlabel('X (m)', fontsize=20)
ax[2].set_ylabel('Depth (m)', fontsize=20)
ax[2].set_aspect('auto')

plt.tight_layout()
# Timestep size from Eq. 7 with V_p=6000. and dx=100
t0, tn = 0., 2000.
dt = model.critical_dt
time_range = TimeAxis(start=t0, stop=tn, step=dt)

src = RickerSource(name='src', grid=model.grid, f0=0.015, time_range=time_range)
src.coordinates.data[:] = [1500., 10.]

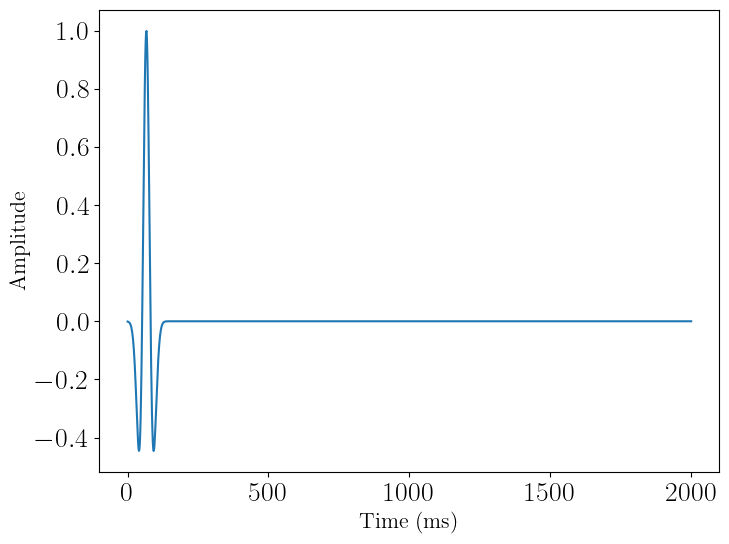

#NBVAL_SKIP

src.show()

# Vectorial form

While conventional litterature writes the elastic wave-equation as a set of scalar PDEs, the higher level representation comes from Hooke’s law and the equation of motion and writes as:

$\begin{cases} &\frac{dv}{dt} = \nabla . \tau \\ &\frac{d \tau}{dt} = \lambda tr(\nabla v) \mathbf{I} + \mu (\nabla v + (\nabla v)^T) \end{cases}$

and as $$tr(\nabla v)$$ is the divergence of $$v$$ we can reqrite it as

$\begin{cases} &\frac{dv}{dt} = \nabla . \tau \\ &\frac{d \tau}{dt} = \lambda \text{diag}(\nabla . v) + \mu (\nabla v + (\nabla v)^T) \end{cases}$

where $$v$$ is a vector valued function:

$$v(t, x, y) = (v_x(t, x, y), v_y(t, x, y)$$

and the stress $$\tau$$ is a symmetric tensor valued function:

$$\tau(t, x, y) = \begin{bmatrix}\tau_{xx}(t, x, y) & \tau_{xy}(t, x, y)\\\tau_{xy}t, x, y) & \tau_{yy}(t, x, y)\end{bmatrix}$$

We show in the following how to setup the elastic wave-equation form Devito’s high-level tensorial types.

# Now we create the velocity and pressure fields

x, z = model.grid.dimensions
t = model.grid.stepping_dim
time = model.grid.time_dim
s = time.spacing

v = VectorTimeFunction(name='v', grid=model.grid, space_order=so, time_order=1)
tau = TensorTimeFunction(name='t', grid=model.grid, space_order=so, time_order=1)
# The source injection term
src_xx = src.inject(field=tau.forward[0, 0], expr=s*src)
src_zz = src.inject(field=tau.forward[1, 1], expr=s*src)

nrec = 301
rec = Receiver(name="rec", grid=model.grid, npoint=nrec, time_range=time_range)
rec.coordinates.data[:, 0] = np.linspace(0., model.domain_size[0], num=nrec)
rec.coordinates.data[:, -1] = 5.

rec2 = Receiver(name="rec2", grid=model.grid, npoint=nrec, time_range=time_range)
rec2.coordinates.data[:, 0] = np.linspace(0., model.domain_size[0], num=nrec)
rec2.coordinates.data[:, -1] = 3000.0/nlayers

rec3 = Receiver(name="rec3", grid=model.grid, npoint=nrec, time_range=time_range)
rec3.coordinates.data[:, 0] = np.linspace(0., model.domain_size[0], num=nrec)
rec3.coordinates.data[:, -1] = 3000.0/nlayers

rec_term = rec.interpolate(expr=tau[0, 0] + tau[1, 1])
rec_term += rec2.interpolate(expr=v[1])
rec_term += rec3.interpolate(expr=v[0])

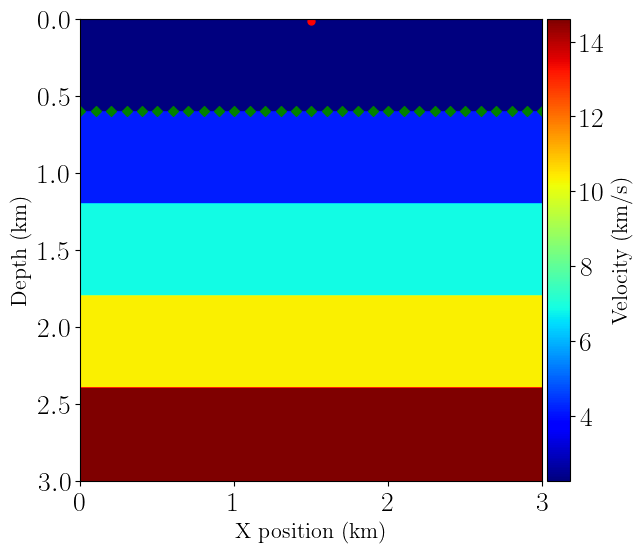

#NBVAL_SKIP
from examples.seismic import plot_velocity
plot_velocity(model, source=src.coordinates.data,
plot_velocity(model, source=src.coordinates.data,
receiver=rec2.coordinates.data[::10, :])
# Now let's try and create the staggered updates
# Lame parameters
l, mu, ro = model.lam, model.mu, model.b

# First order elastic wave equation
pde_v = v.dt - ro * div(tau)
pde_tau = tau.dt - l * diag(div(v.forward)) - mu * (grad(v.forward) + grad(v.forward).transpose(inner=False))
# Time update
u_v = Eq(v.forward, model.damp * solve(pde_v, v.forward))
u_t = Eq(tau.forward,  model.damp * solve(pde_tau, tau.forward))

op = Operator([u_v] + [u_t] + src_xx + src_zz + rec_term)
v.time_order

$$\displaystyle 1$$

ro._eval_at(v[0]).evaluate

$$\displaystyle 0.5 b(x, y) + 0.5 b(x + h_x, y)$$

mu._eval_at(v[0]).evaluate

$$\displaystyle \frac{1}{\frac{0.5}{mu(x + h_x, y)} + \frac{0.5}{mu(x, y)}}$$

We can now see that both the particle velocities and stress equations are vectorial and tensorial equations. Devito takes care of the discretization and staggered grids automatically for these types of object.

u_v

$$\displaystyle \left[\begin{matrix}v_x(t + dt, x + h_x/2, y)\\v_y(t + dt, x, y + h_y/2)\end{matrix}\right] = \left[\begin{matrix}dt \left(\left(\frac{\partial}{\partial x} t_xx(t, x, y) + \frac{\partial}{\partial y} t_xy(t, x + h_x/2, y + h_y/2)\right) b(x, y) + \frac{v_x(t, x + h_x/2, y)}{dt}\right) damp(x, y)\\dt \left(\left(\frac{\partial}{\partial x} t_xy(t, x + h_x/2, y + h_y/2) + \frac{\partial}{\partial y} t_yy(t, x, y)\right) b(x, y) + \frac{v_y(t, x, y + h_y/2)}{dt}\right) damp(x, y)\end{matrix}\right]$$

u_t

$$\displaystyle \left[\begin{matrix}t_xx(t + dt, x, y) & t_xy(t + dt, x + h_x/2, y + h_y/2)\\t_xy(t + dt, x + h_x/2, y + h_y/2) & t_yy(t + dt, x, y)\end{matrix}\right] = \left[\begin{matrix}dt \left(\left(\frac{\partial}{\partial x} v_x(t + dt, x + h_x/2, y) + \frac{\partial}{\partial y} v_y(t + dt, x, y + h_y/2)\right) lam(x, y) + 2 mu(x, y) \frac{\partial}{\partial x} v_x(t + dt, x + h_x/2, y) + \frac{t_xx(t, x, y)}{dt}\right) damp(x, y) & dt \left(\left(\frac{\partial}{\partial y} v_x(t + dt, x + h_x/2, y) + \frac{\partial}{\partial x} v_y(t + dt, x, y + h_y/2)\right) mu(x, y) + \frac{t_xy(t, x + h_x/2, y + h_y/2)}{dt}\right) damp(x, y)\\dt \left(\left(\frac{\partial}{\partial y} v_x(t + dt, x + h_x/2, y) + \frac{\partial}{\partial x} v_y(t + dt, x, y + h_y/2)\right) mu(x, y) + \frac{t_xy(t, x + h_x/2, y + h_y/2)}{dt}\right) damp(x, y) & dt \left(\left(\frac{\partial}{\partial x} v_x(t + dt, x + h_x/2, y) + \frac{\partial}{\partial y} v_y(t + dt, x, y + h_y/2)\right) lam(x, y) + 2 mu(x, y) \frac{\partial}{\partial y} v_y(t + dt, x, y + h_y/2) + \frac{t_yy(t, x, y)}{dt}\right) damp(x, y)\end{matrix}\right]$$

#NBVAL_IGNORE_OUTPUT
# Partial ru for 1.2sec to plot the wavefield
op(dt=model.critical_dt, time_M=int(1000/model.critical_dt))
PerformanceSummary([(PerfKey(name='section0', rank=None),
PerfEntry(time=6.7e-05, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section1', rank=None),
PerfEntry(time=0.21489299999999997, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section2', rank=None),
PerfEntry(time=0.008633000000000002, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section3', rank=None),
PerfEntry(time=0.009946999999999996, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section4', rank=None),
PerfEntry(time=0.009097, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section5', rank=None),
PerfEntry(time=0.008821999999999998, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[]))])

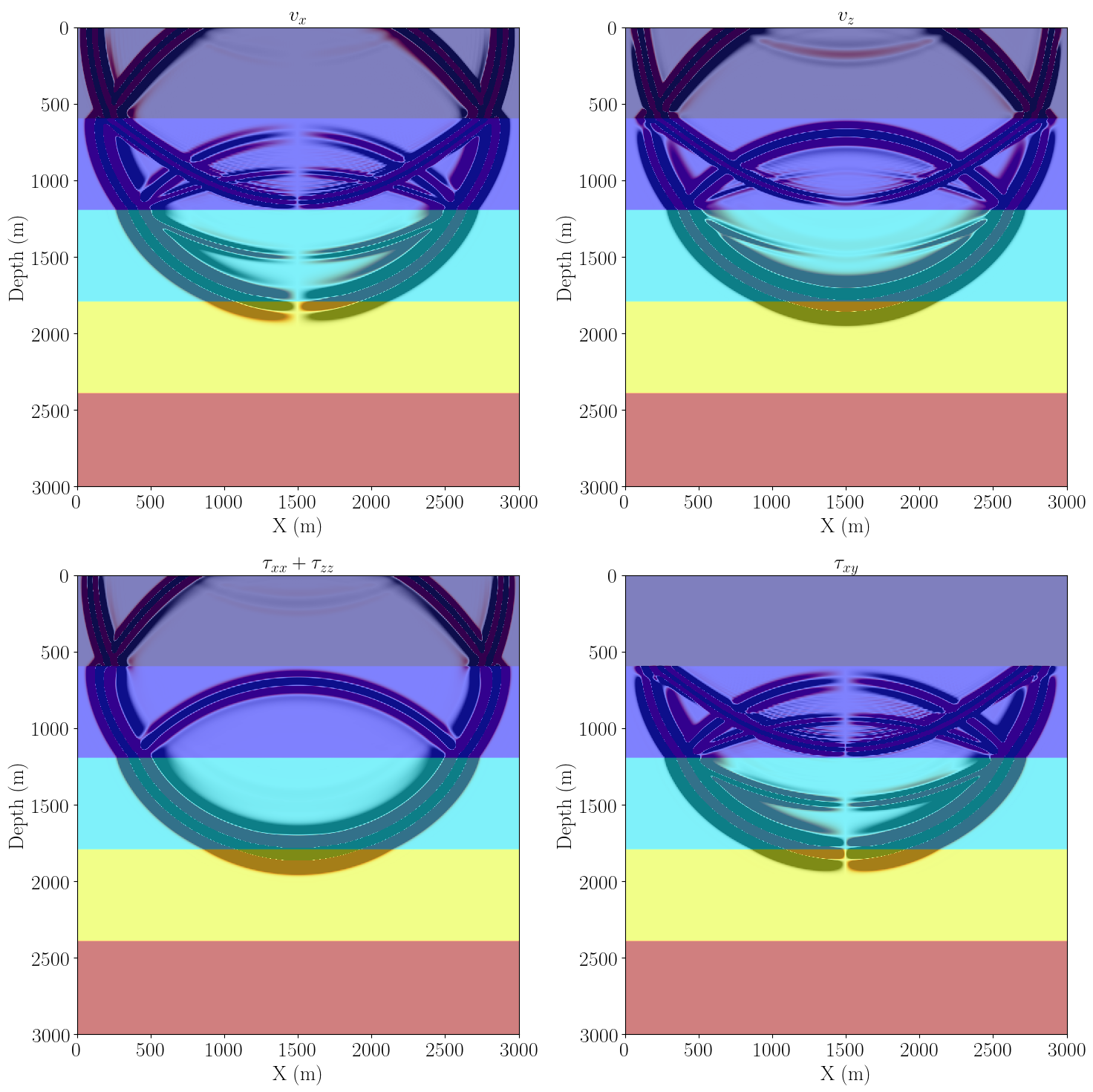

#NBVAL_SKIP
scale = .5*1e-3

plt_options_model = {'extent': [model.origin[0] , model.origin[0] + model.domain_size[0],
model.origin[1] + model.domain_size[1], model.origin[1]]}

fig, ax = plt.subplots(nrows=2, ncols=2, figsize=(15, 15))

ax[0, 0].imshow(np.transpose(v[0].data[0][slices]), vmin=-scale, vmax=scale, cmap="RdGy", **plt_options_model)
ax[0, 0].imshow(np.transpose(model.lam.data[slices]), vmin=2.5, vmax=15.0, cmap="jet", alpha=.5, **plt_options_model)
ax[0, 0].set_aspect('auto')
ax[0, 0].set_xlabel('X (m)', fontsize=20)
ax[0, 0].set_ylabel('Depth (m)', fontsize=20)
ax[0, 0].set_title(r"$v_{x}$", fontsize=20)

ax[0, 1].imshow(np.transpose(v[1].data[0][slices]), vmin=-scale, vmax=scale, cmap="RdGy", **plt_options_model)
ax[0, 1].imshow(np.transpose(model.lam.data[slices]), vmin=2.5, vmax=15.0, cmap="jet", alpha=.5, **plt_options_model)
ax[0, 1].set_aspect('auto')
ax[0, 1].set_title(r"$v_{z}$", fontsize=20)
ax[0, 1].set_xlabel('X (m)', fontsize=20)
ax[0, 1].set_ylabel('Depth (m)', fontsize=20)

ax[1, 0].imshow(np.transpose(tau[0,0].data[0][slices]+tau[1,1].data[0][slices]),
vmin=-10*scale, vmax=10*scale, cmap="RdGy", **plt_options_model)
ax[1, 0].imshow(np.transpose(model.lam.data[slices]), vmin=2.5, vmax=15.0, cmap="jet",
alpha=.5, **plt_options_model)
ax[1, 0].set_aspect('auto')
ax[1, 0].set_title(r"$\tau_{xx} + \tau_{zz}$", fontsize=20)
ax[1, 0].set_xlabel('X (m)', fontsize=20)
ax[1, 0].set_ylabel('Depth (m)', fontsize=20)

ax[1, 1].imshow(np.transpose(tau[0,1].data[0][slices]), vmin=-scale, vmax=scale, cmap="RdGy", **plt_options_model)
ax[1, 1].imshow(np.transpose(model.lam.data[slices]), vmin=2.5, vmax=15.0, cmap="jet", alpha=.5, **plt_options_model)
ax[1, 1].set_aspect('auto')
ax[1, 1].set_title(r"$\tau_{xy}$", fontsize=20)
ax[1, 1].set_xlabel('X (m)', fontsize=20)
ax[1, 1].set_ylabel('Depth (m)', fontsize=20)

plt.tight_layout()
model._physical_parameters
{'b', 'damp', 'lam', 'mu'}
#NBVAL_IGNORE_OUTPUT
# Full run for the data
op(dt=model.critical_dt, time_m=int(1000/model.critical_dt))
PerformanceSummary([(PerfKey(name='section0', rank=None),
PerfEntry(time=0.000122, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section1', rank=None),
PerfEntry(time=0.22705799999999993, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section2', rank=None),
PerfEntry(time=0.010287000000000018, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section3', rank=None),
PerfEntry(time=0.011529000000000015, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section4', rank=None),
PerfEntry(time=0.010491, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section5', rank=None),
PerfEntry(time=0.011277000000000006, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[]))])
# Data on a standard 2ms tim axis
rec_plot = rec.resample(num=1001)
rec2_plot = rec2.resample(num=1001)
rec3_plot = rec3.resample(num=1001)
scale_for_plot = np.diag(np.linspace(1.0, 2.5, 1001)**2.0)
#NBVAL_SKIP

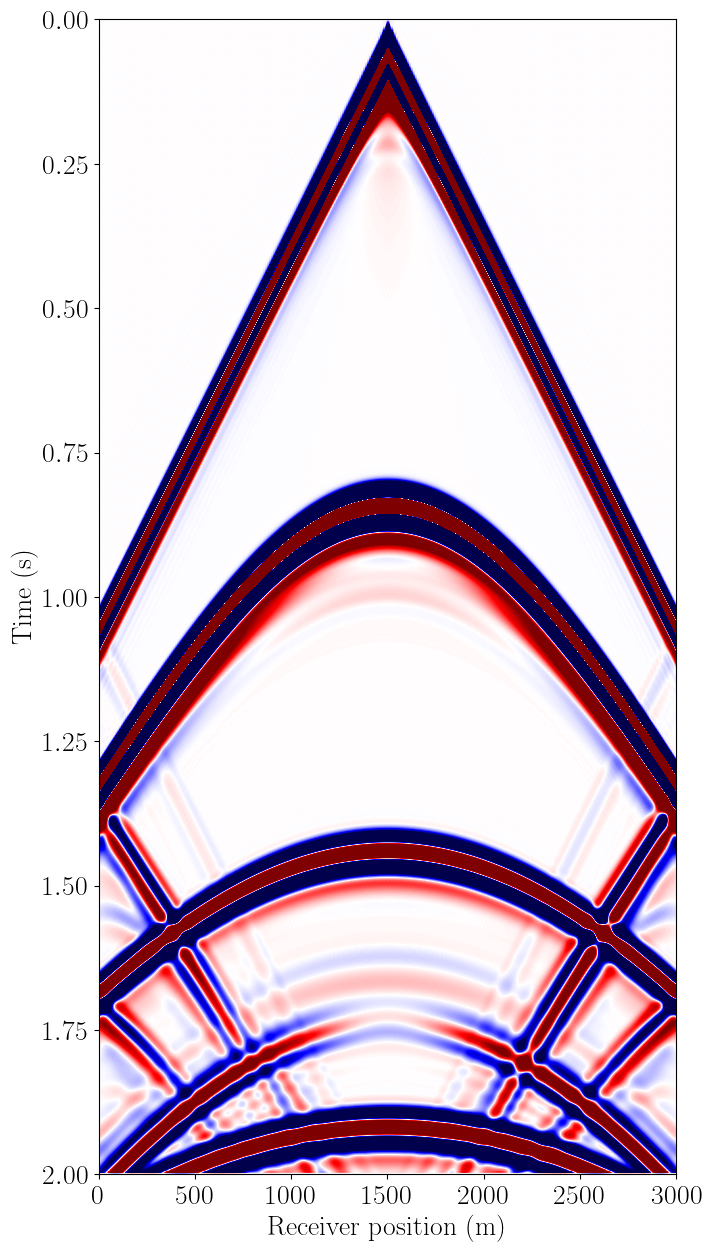

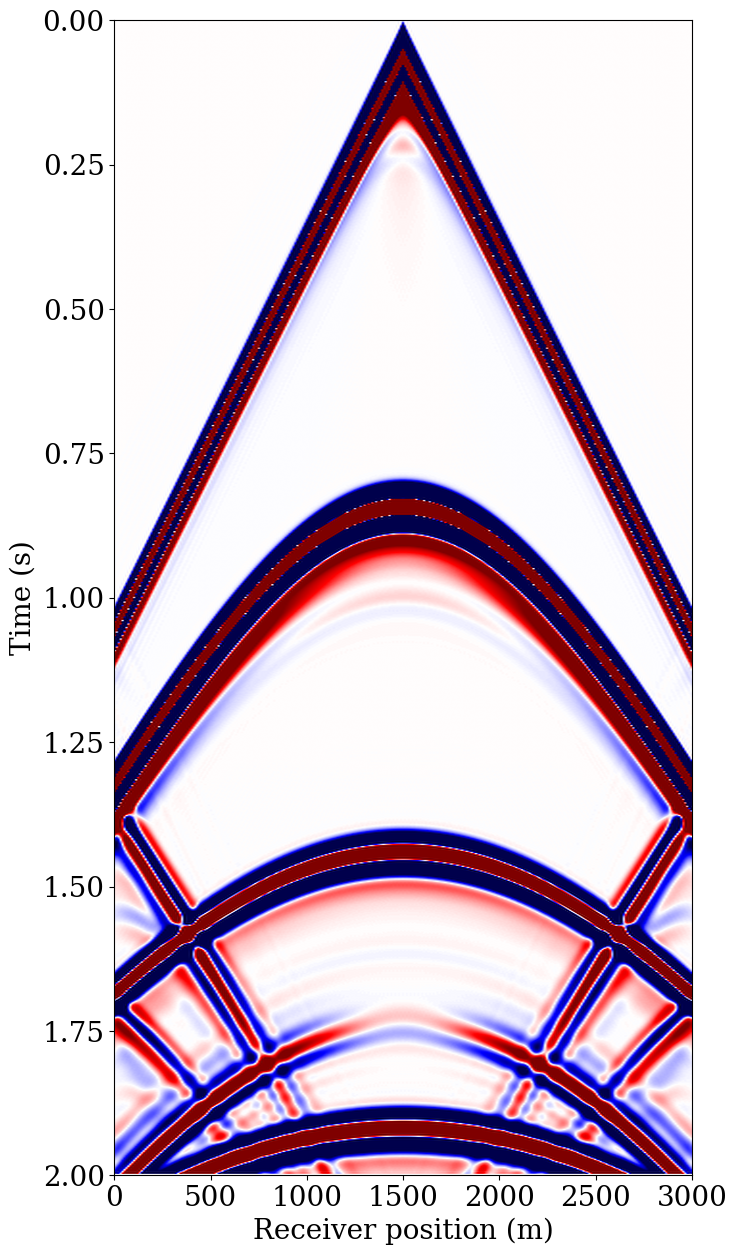

# Pressure (txx + tzz) data at sea surface
extent = [rec_plot.coordinates.data[0, 0], rec_plot.coordinates.data[-1, 0], 1e-3*tn, t0]
aspect = rec_plot.coordinates.data[-1, 0]/(1e-3*tn)/.5

plt.figure(figsize=(15, 15))
plt.imshow(np.dot(scale_for_plot, rec_plot.data), vmin=-.01, vmax=.01, cmap="seismic",
interpolation='lanczos', extent=extent, aspect=aspect)
plt.ylabel("Time (s)", fontsize=20)
plt.xlabel("Receiver position (m)", fontsize=20)
Text(0.5, 0, 'Receiver position (m)')
#NBVAL_SKIP

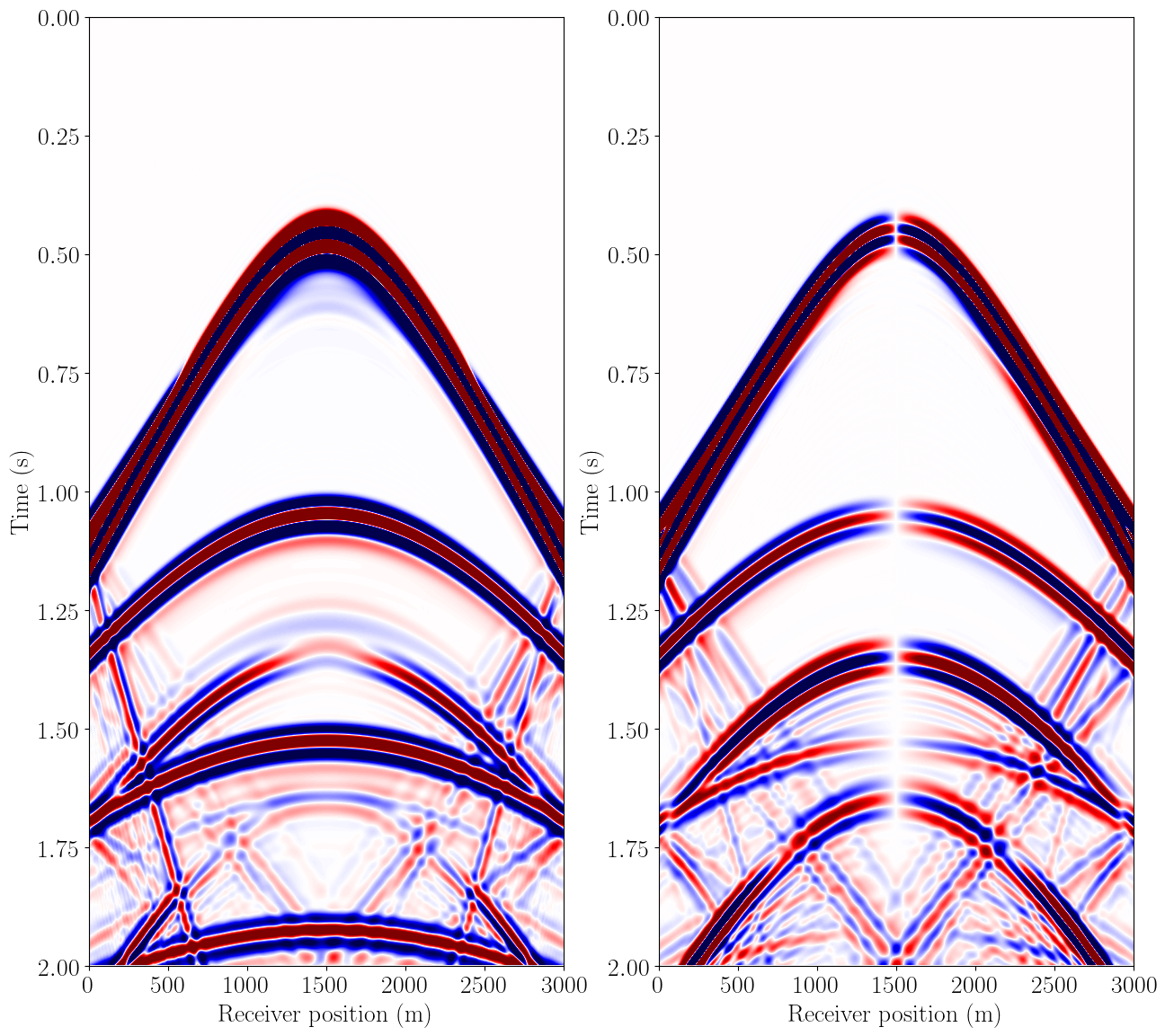

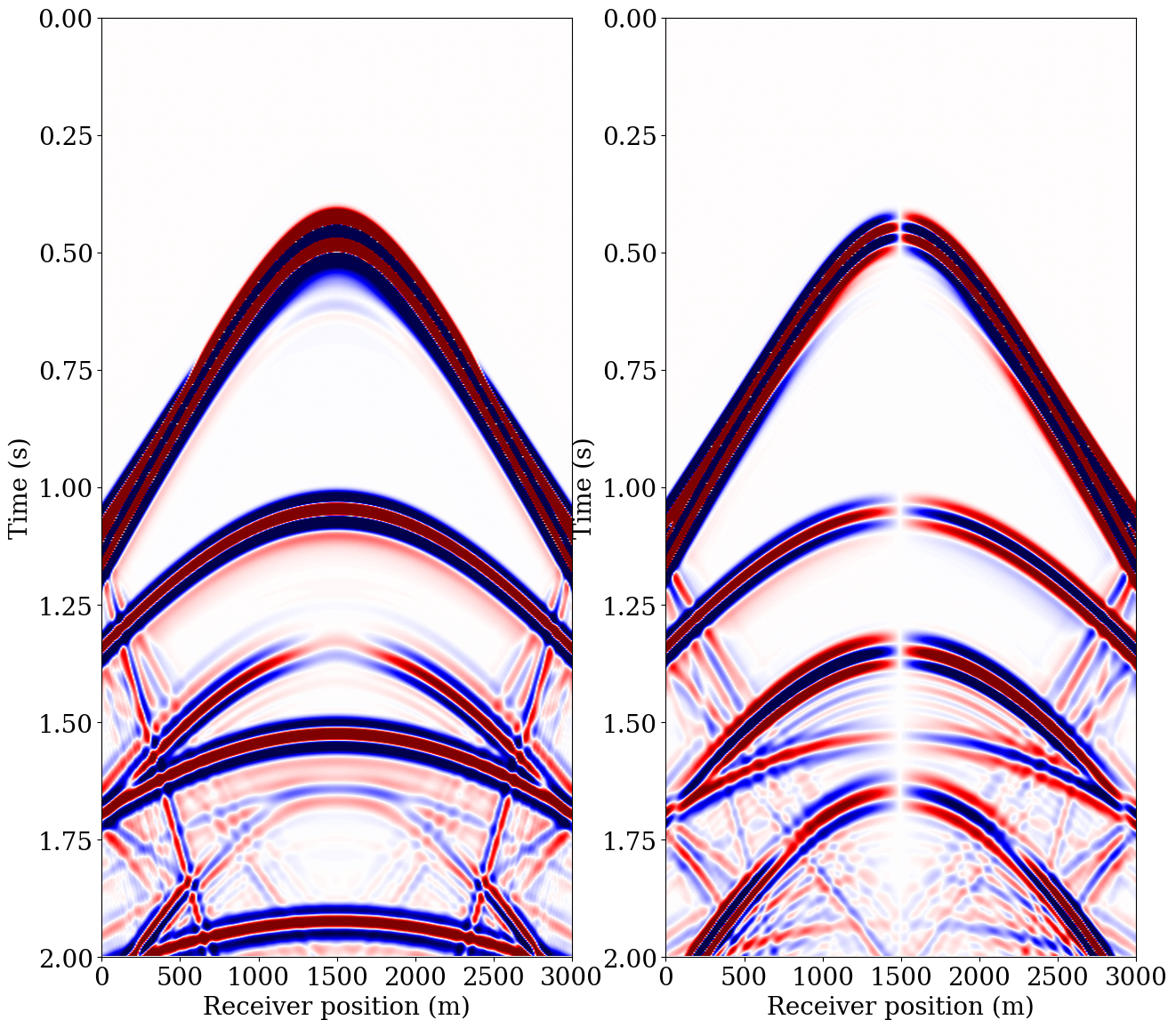

# OBC data of vx/vz
plt.figure(figsize=(15, 15))
plt.subplot(121)
plt.imshow(rec2_plot.data, vmin=-1e-3, vmax=1e-3, cmap="seismic",
interpolation='lanczos', extent=extent, aspect=aspect)
plt.ylabel("Time (s)", fontsize=20)
plt.subplot(122)
plt.imshow(rec3_plot.data, vmin=-1e-3, vmax=1e-3, cmap="seismic",
interpolation='lanczos', extent=extent, aspect=aspect)
plt.ylabel("Time (s)", fontsize=20)
plt.xlabel("Receiver position (m)", fontsize=20)
Text(0.5, 0, 'Receiver position (m)')
assert np.isclose(norm(rec), 22.83, atol=0, rtol=1e-3)
assert np.isclose(norm(rec2), 2.3397, atol=0, rtol=1e-3)
assert np.isclose(norm(rec3), 2.777, atol=0, rtol=1e-3)

# Second order in time

Now that looks pretty! But let’s do it again with a 2nd order in time

so = 8
v2 = VectorTimeFunction(name='v2', grid=model.grid, space_order=so, time_order=2)
tau0 = TensorFunction(name='t0', grid=model.grid, space_order=so)
# The source injection term
src_xx = src.inject(field=tau0[0, 0], expr=src.dt)
src_zz = src.inject(field=tau0[1, 1], expr=src.dt)

s = model.grid.time_dim.spacing

# Second order elastic wave equation
pde_v2 = v2.dt2 - ro * div(tau0) + (1 - model.damp) * v2.dt

# Time update
u_v = Eq(v2.forward, solve(pde_v2, v2.forward))
# The stress equation isn't time dependent so we don't need solve.
u_t = Eq(tau0, model.damp * (l * diag(div(v2.forward)) + mu * (grad(v2.forward) + grad(v2.forward).transpose(inner=False))))

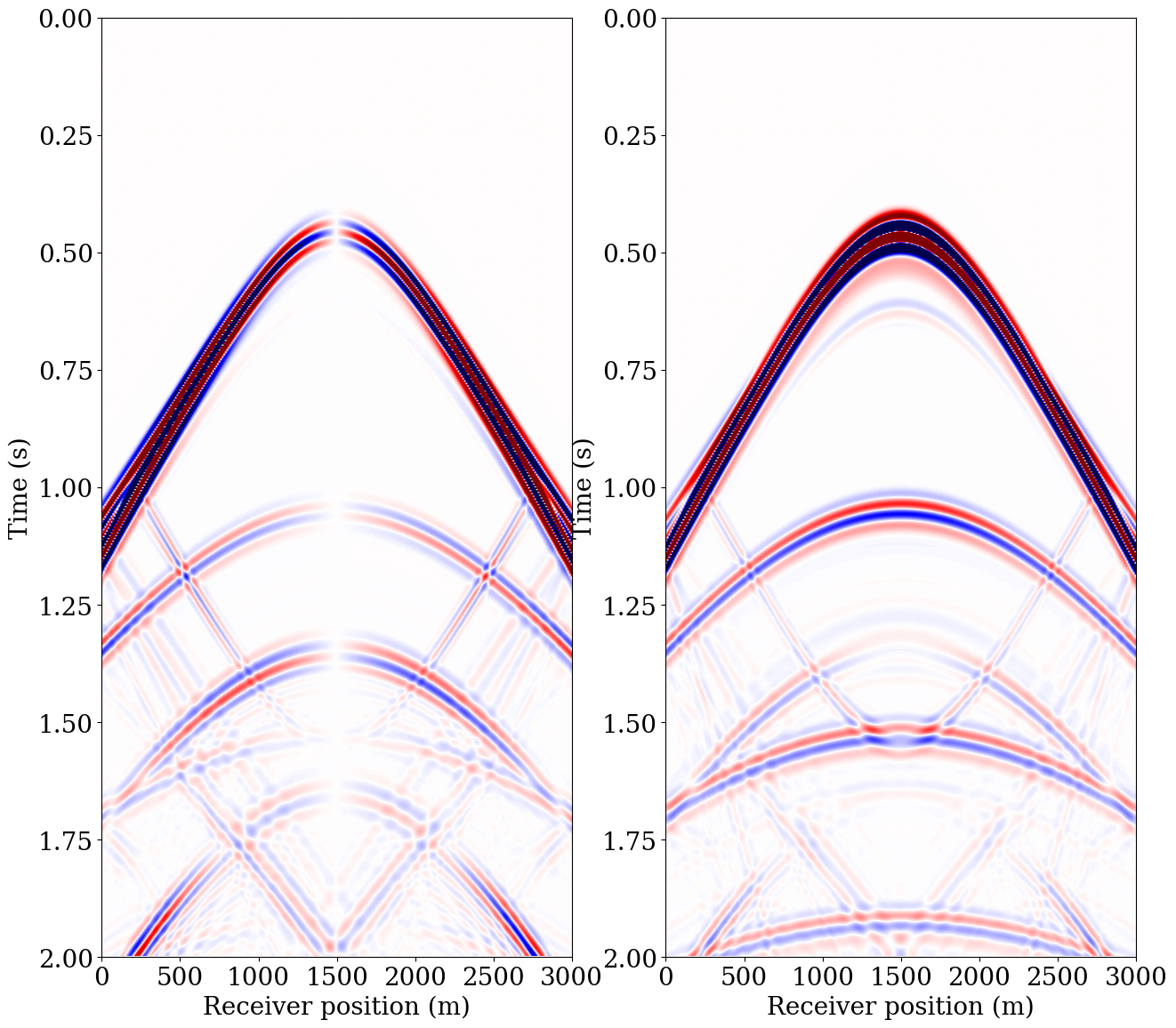

rec_term2 = rec2.interpolate(expr=v2[0])
rec_term2 += rec3.interpolate(expr=v2[1])
op = Operator([u_v] + [u_t] + src_xx + src_zz + rec_term2)
#NBVAL_IGNORE_OUTPUT
# Partial ru for 1.2sec to plot the wavefield
op(dt=model.critical_dt, time_M=int(1000/model.critical_dt))
PerformanceSummary([(PerfKey(name='section0', rank=None),
PerfEntry(time=4.9999999999999996e-05, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section1', rank=None),
PerfEntry(time=0.20182600000000028, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section2', rank=None),
PerfEntry(time=0.008900000000000003, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section3', rank=None),
PerfEntry(time=0.010342000000000004, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section4', rank=None),
PerfEntry(time=0.010048000000000007, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[]))])

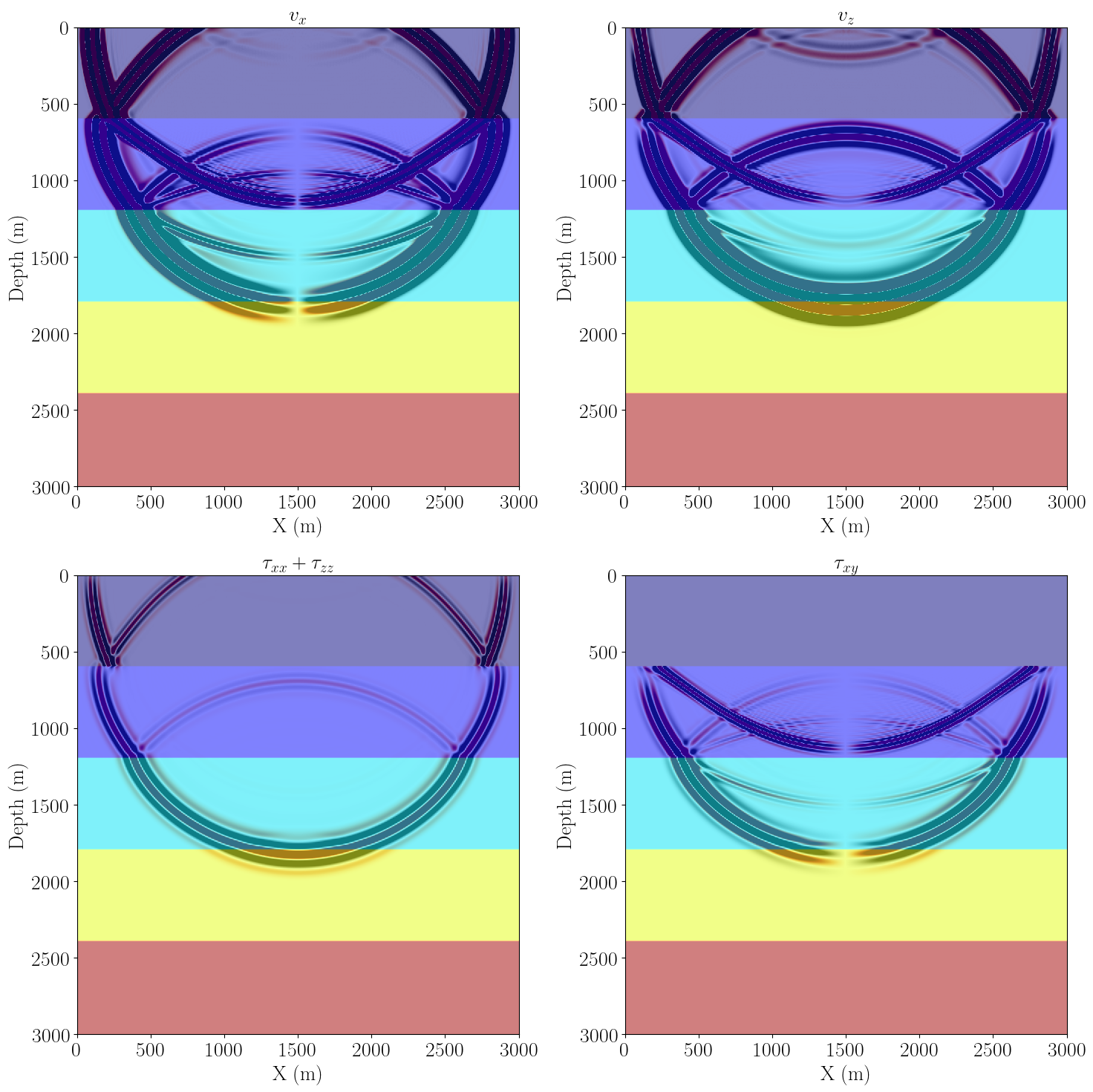

#NBVAL_SKIP
scale = 1e-4

plt_options_model = {'extent': [model.origin[0] , model.origin[0] + model.domain_size[0],
model.origin[1] + model.domain_size[1], model.origin[1]]}

fig, ax = plt.subplots(nrows=2, ncols=2, figsize=(15, 15))

ax[0, 0].imshow(np.transpose(v2[0].data[0][slices]), vmin=-scale, vmax=scale, cmap="RdGy", **plt_options_model)
ax[0, 0].imshow(np.transpose(model.lam.data[slices]), vmin=2.5, vmax=15.0, cmap="jet", alpha=.5, **plt_options_model)
ax[0, 0].set_aspect('auto')
ax[0, 0].set_xlabel('X (m)', fontsize=20)
ax[0, 0].set_ylabel('Depth (m)', fontsize=20)
ax[0, 0].set_title(r"$v_{x}$", fontsize=20)

ax[0, 1].imshow(np.transpose(v2[1].data[0][slices]), vmin=-scale, vmax=scale, cmap="RdGy", **plt_options_model)
ax[0, 1].imshow(np.transpose(model.lam.data[slices]), vmin=2.5, vmax=15.0, cmap="jet", alpha=.5, **plt_options_model)
ax[0, 1].set_aspect('auto')
ax[0, 1].set_title(r"$v_{z}$", fontsize=20)
ax[0, 1].set_xlabel('X (m)', fontsize=20)
ax[0, 1].set_ylabel('Depth (m)', fontsize=20)

ax[1, 0].imshow(np.transpose(tau0[0,0].data[slices]+tau0[1,1].data[slices]),
vmin=-10*scale, vmax=10*scale, cmap="RdGy", **plt_options_model)
ax[1, 0].imshow(np.transpose(model.lam.data[slices]), vmin=2.5, vmax=15.0, cmap="jet",
alpha=.5, **plt_options_model)
ax[1, 0].set_aspect('auto')
ax[1, 0].set_title(r"$\tau_{xx} + \tau_{zz}$", fontsize=20)
ax[1, 0].set_xlabel('X (m)', fontsize=20)
ax[1, 0].set_ylabel('Depth (m)', fontsize=20)

ax[1, 1].imshow(np.transpose(tau0[0,1].data[slices]), vmin=-scale, vmax=scale, cmap="RdGy", **plt_options_model)
ax[1, 1].imshow(np.transpose(model.lam.data[slices]), vmin=2.5, vmax=15.0, cmap="jet", alpha=.5, **plt_options_model)
ax[1, 1].set_aspect('auto')
ax[1, 1].set_title(r"$\tau_{xy}$", fontsize=20)
ax[1, 1].set_xlabel('X (m)', fontsize=20)
ax[1, 1].set_ylabel('Depth (m)', fontsize=20)

plt.tight_layout()
#NBVAL_IGNORE_OUTPUT
op(dt=model.critical_dt, time_m=int(1000/model.critical_dt))
PerformanceSummary([(PerfKey(name='section0', rank=None),
PerfEntry(time=6.3e-05, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section1', rank=None),
PerfEntry(time=0.20645400000000022, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section2', rank=None),
PerfEntry(time=0.010413999999999988, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section3', rank=None),
PerfEntry(time=0.010468, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section4', rank=None),
PerfEntry(time=0.010121000000000007, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[]))])
rec2_plot2 = rec2.resample(num=1001)
rec3_plot2 = rec3.resample(num=1001)
#NBVAL_SKIP
# OBC data of vx/vz
plt.figure(figsize=(15, 15))
plt.subplot(121)
plt.imshow(rec2_plot2.data, vmin=-1e-3, vmax=1e-3, cmap="seismic",
interpolation='lanczos', extent=extent, aspect=aspect)
plt.ylabel("Time (s)", fontsize=20)
plt.subplot(122)
plt.imshow(rec3_plot2.data, vmin=-1e-3, vmax=1e-3, cmap="seismic",
interpolation='lanczos', extent=extent, aspect=aspect)
plt.ylabel("Time (s)", fontsize=20)
plt.xlabel("Receiver position (m)", fontsize=20)
Text(0.5, 0, 'Receiver position (m)')
assert np.isclose(norm(rec2), .312544, atol=0, rtol=1e-3)
assert np.isclose(norm(rec3), .257998, atol=0, rtol=1e-3)

# Rotated staggered grid

Now let’s use the rotated staggered grid to avoid dispersion and instabilities. This method is usually used for TTI elastic modeling but we show it here for a simplified isotropic case

## Simple example of RSFD

We first show the stencil generated by the RSFD method compared to the standard staggered grid method

x = model.grid.dimensions[0]
f = Function(name='f', grid=model.grid, space_order=2, staggered=NODE)
dfdx, dfdxrsfd = f.dx, f.dx45
dfdx.evaluate

$$\displaystyle \frac{f(x, y)}{h_{x}} - \frac{f(x - h_x, y)}{h_{x}}$$

dfdxrsfd.evaluate

$$\displaystyle \left(- \frac{f(x - h_x, y - h_y)}{4 h_{x}} + \frac{f(x + h_x, y + h_y)}{4 h_{x}}\right) + \left(- \frac{f(x - h_x, y + h_y)}{4 h_{x}} + \frac{f(x + h_x, y - h_y)}{4 h_{x}}\right)$$

## Elastic modeling

from devito import div45, grad45

all_node = [[NODE for _ in range(model.grid.dim)] for _ in range(model.grid.dim)]
all_vert = [model.grid.dimensions for _ in range(model.grid.dim)]

so = 8
v_rsfd = VectorTimeFunction(name='vr', grid=model.grid, space_order=so, time_order=1, staggered=all_vert)
tau_rsfd = TensorTimeFunction(name='tr', grid=model.grid, space_order=so, time_order=1, staggered=all_node)

# The source injection term
src_xx = src.inject(field=v_rsfd.forward.diagonal(), expr=s*src)

# First order elastic wave equation
pde_v = v_rsfd.dt - ro * div45(tau_rsfd)
pde_tau = tau_rsfd.dt - l * diag(div45(v_rsfd.forward)) - mu * (grad45(v_rsfd.forward) + grad45(v_rsfd.forward).transpose(inner=False))
# Time update
u_v = Eq(v_rsfd.forward, model.damp * solve(pde_v, v_rsfd.forward))
u_t = Eq(tau_rsfd.forward,  model.damp * solve(pde_tau, tau_rsfd.forward))

rec_term = rec.interpolate(expr=tau_rsfd[0, 0] + tau_rsfd[1, 1])
rec_term += rec2.interpolate(expr=v_rsfd[1])
rec_term += rec3.interpolate(expr=v_rsfd[0])

op = Operator([u_v] + [u_t] + src_xx + rec_term)
#NBVAL_IGNORE_OUTPUT
op(dt=model.critical_dt)
PerformanceSummary([(PerfKey(name='section0', rank=None),
PerfEntry(time=0.45343199999999967, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section1', rank=None),
PerfEntry(time=0.019358000000000004, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section2', rank=None),
PerfEntry(time=0.022600000000000127, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section3', rank=None),
PerfEntry(time=0.022155000000000025, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[])),
(PerfKey(name='section4', rank=None),
PerfEntry(time=0.021414000000000086, gflopss=0.0, gpointss=0.0, oi=0.0, ops=0, itershapes=[]))])
rec_plot2 = rec.resample(num=1001)
rec2_plot2 = rec2.resample(num=1001)
rec3_plot2 = rec3.resample(num=1001)
#NBVAL_SKIP
# Pressure (txx + tzz) data at sea surface
extent = [rec_plot.coordinates.data[0, 0], rec_plot.coordinates.data[-1, 0], 1e-3*tn, t0]
aspect = rec_plot.coordinates.data[-1, 0]/(1e-3*tn)/.5

plt.figure(figsize=(15, 15))
plt.imshow(np.dot(scale_for_plot, rec_plot.data), vmin=-.01, vmax=.01, cmap="seismic",
interpolation='lanczos', extent=extent, aspect=aspect)
plt.ylabel("Time (s)", fontsize=20)
plt.xlabel("Receiver position (m)", fontsize=20)
Text(0.5, 0, 'Receiver position (m)')
#NBVAL_SKIP
# OBC data of vx/vz
plt.figure(figsize=(15, 15))
plt.subplot(121)
plt.imshow(rec2_plot.data, vmin=-1e-3, vmax=1e-3, cmap="seismic",
interpolation='lanczos', extent=extent, aspect=aspect)
plt.ylabel("Time (s)", fontsize=20)
plt.xlabel("Receiver position (m)", fontsize=20)
Text(0.5, 0, 'Receiver position (m)')
assert np.isclose(norm(rec), 29.83, atol=0, rtol=1e-3)
assert np.isclose(norm(rec3), 4.5632, atol=0, rtol=1e-3)
